Supremely accurate dental implant scanners

Our video demonstration...

Features we are proud of...

Ease Of Use

Accuracy

Small posts and Narrow camera separation

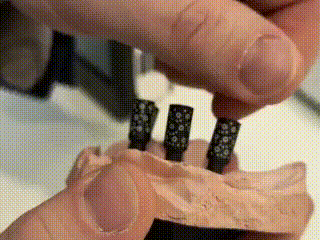

Small posts are more convenient to use.

Wi-Fi

Convenient scanning - no messy cables!

Affordability

Highly competitive pricing. We started on a crusade against over priced medical technology.

Positional Repeatability*: ± 6 µm
Angular Repeatability*: ± 1/30th of a degree

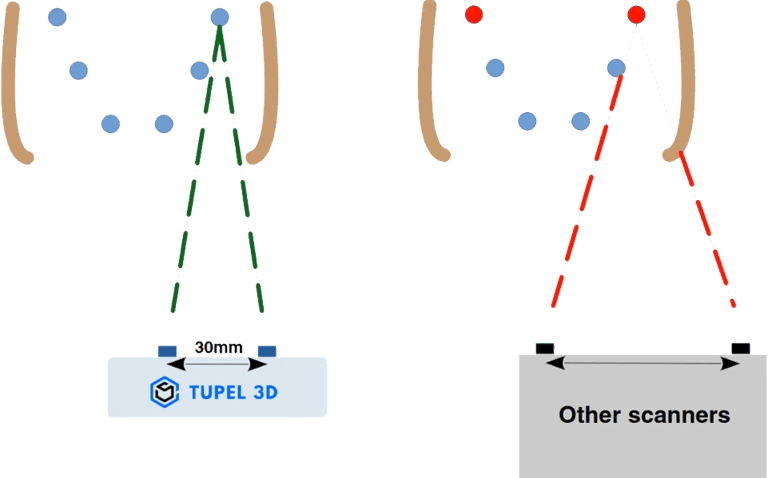

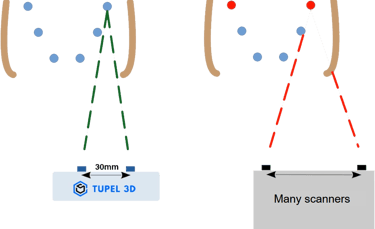

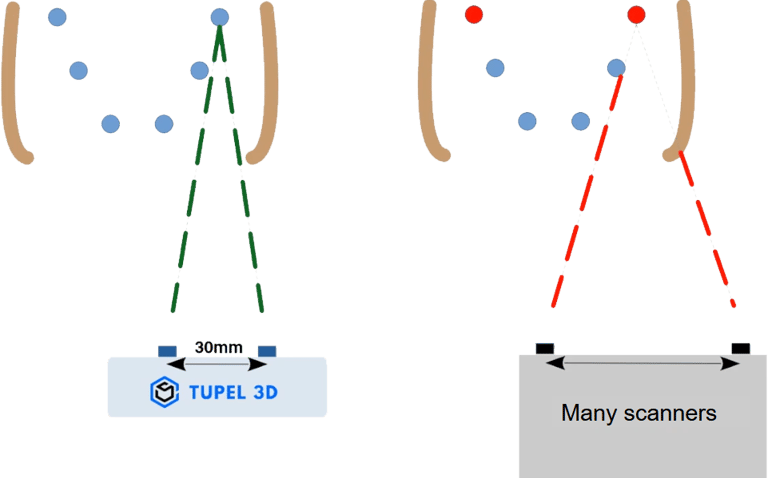

A narrow camera separation allows more reliable capture of posts at the back of the mouth.

Achieving such high accuracy with small posts and a narrow camera separation is only possible thanks to our "Iterative Noise Reduction" system.

LCD Display

Li-ion

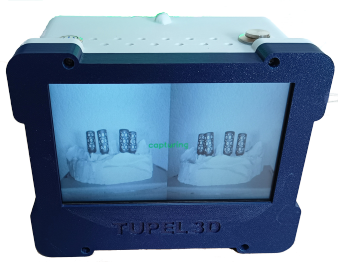

Built in display - no rubber necking to a laptop.

Full specifications:

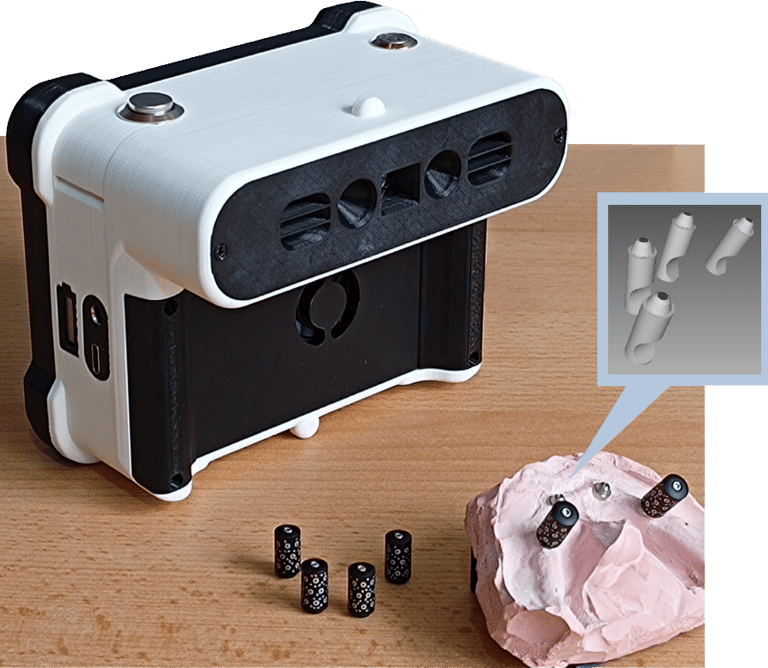

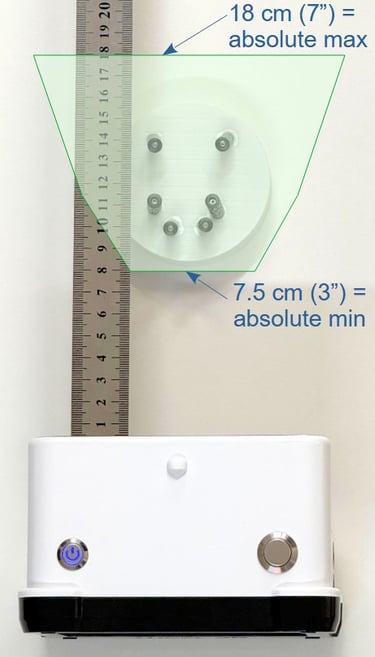

The Tupel 3D implant scanner measures implant positions by using marker posts and a camera system. The output is an .STL CAD file of the implant positions that can be used as the basis for your next design step.

Accuracy
•Positional Accuracy*: ± 9 µm
•Positional Repeatability*: ± 6 µm
•Angular Repeatability*: ± 0.034° (1/30th of a degree)
•Operating temperature: 23⁰C ± 5 ⁰C
•Operational in ambient lighting up to 5000 lux.
*Please download our Accuracy report for full test details.
Scan Time (typical)
•Calibration: 1 min 30 sec typical.
•Scan time: 20 sec typical
(but depends on the number of posts and CPU cores).
Hardware Features
•Cameras: 2 x 2MP global shutter
•Battery Life: Up to 25 scans / 2.5 hours of standby
•Charge Time: 2.5 hours
•Battery Type: Lithium ion
•Dimensions (l w h): 14.2 x 11.8 x 9.7 cm (approx. 6” x 5” x 4”)
•Weight (scanner only): 650g
•Storage temperature: 5 ⁰C to 40 ⁰C
(10⁰C to 25 ⁰C for optimum battery longevity)

Software Functions
•Auto calibration
•Real-time scanning feedback
•Able to scan 6 posts per scan
•Auto merge can combine up to 10 posts per jaw.
•STL and coordinate export
•Iterative Noise Reduction for enhanced accuracy.
PC Requirements
•Windows 10 & 11
•RAM: 16 GB recommended, 8 GB minimum.
•CPU: > 8 cores recommended, 4 cores minimum.
Connectivity and Power Supply
•USB 2.0, USB 3.0, or Wi-Fi Data Transfer.
•Input Voltage: AC 110V – 240V, 50/60Hz, converted to 5V 4A.
•PSU supplied with a UK, EU, US, or AU plug type, depending on your location.
•Power consumption: 15W typical.

Posts and Scan Bodies

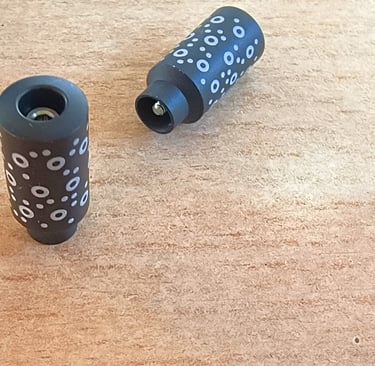

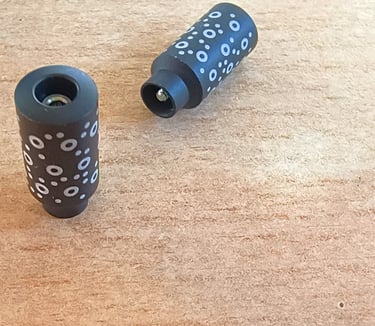

• 6 Dot posts and 6 Scan Bodies are supplied with each scanner.
• To fit Multi Unit Abutments - generally speaking the shape of the MUA and the retaining screw are universal and the majority of implant companies follow this design.
• They are compatible with Nobel BioCare, BioHorizons, 3i, Megagen, Hiossen, Neodent, BSB, Astra EV Multibase, and CM Connect and many more.
• Bredent compatible available by request.
• They are autoclavable and reusable.
• If lost or damaged they can be individually replaced, keeping your costs low.
• If you need a custom design of dot post, we can do that (please contact us to discuss).

Posts
• Sizes:

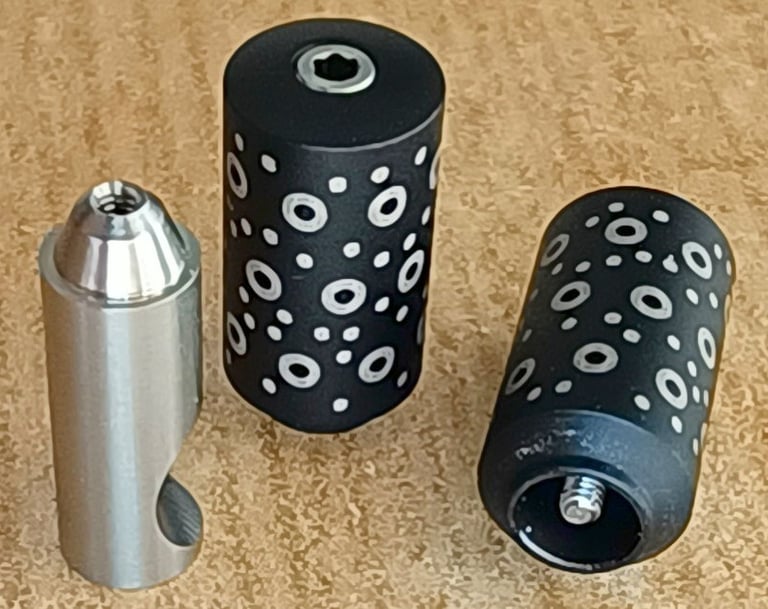

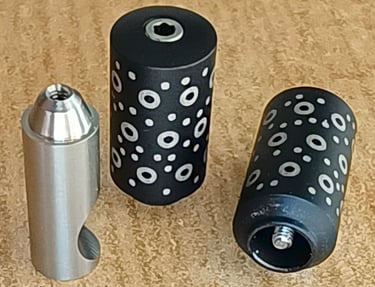

- 7mm diameter, 15.6mm height , 4.8mm platform.
- M1.4 (default), M1.6, and M1.8 threads.
- Bredent copaSKY uni.cone, copaSKY Fast&Fix

Scan bodies .
• Do you want to use your own scan bodies? Just send us its STL and we will add it as an export option. Free of charge.
• BSB exocad libraries freely downloadable

Extra reasons to buy:

•Full training with charge.
•Customer support via video, text or email.
•If you are not happy with the scanner within 30 days, we will refund all but the postage.
•Its a well tested product made to ISO 13485, and registered with the FDA.
•Patent pending, breakthrough marker post tracking technology.
