Supremely accurate 3D scanners
Our video demonstration...
Features we are proud of...
Ease Of Use
1 click calibration
Fully automatic calibration that takes 4 minutes to complete.
1 click scanning
Allows you to position the scanner across the room, keeping your immediate desk space clear.
The tack pad secures larger objects quickly.
The mini-vice holds small objects with minimal blocking. The jaws are made of plastic so you can scan it, not scratch it.
8 MP cameras x 2
It is the highest resolution scanner we know of.
Scan repeatability is as low as 4 micrometres.
Full colour scanning
This feature forces the scanner to look into the crevices of your object to get the most complete scan possible.
Highly competitive pricing.
We started on a crusade against over priced medical technology.

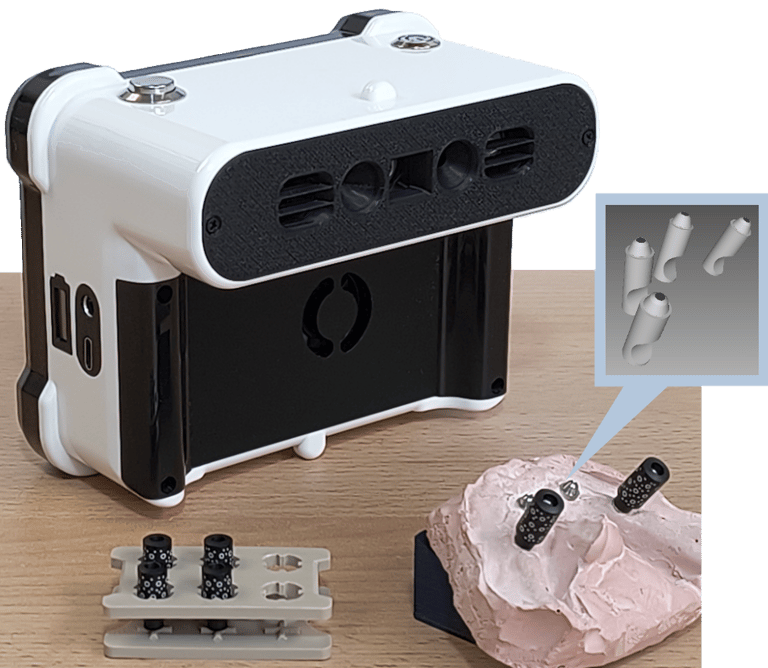

The Tupel 3D scanner converts physical objects into 3D CAD files.
Scan Volume (Cylindrical):
•120mm diameter x 75mm tall (standard).
•40mm diameter x 40mm tall (super resolution).
•Scan repeatability (with ideal conditions):
± 12 µm (standard).
± 4 µm (super resolution).
•Mesh density: adjustable from 25µm to 150µm
•Operating temperature: 20⁰C ± 5 ⁰C
Scan Time (typical)
•1 min 30 sec typical (standard).
•6 min typical (super resolution).
Note: scan times can increase depending on the complexity of the object and the number of scan angles taken.
•2 axis rotation stage.
•Structured light projection with 2 x 8MP cameras.
•Dimensions (l w h): 24.6 x 25.8 x 22.5 cm (approx. 10” x 10” x 9”)
•Weight (scanner only): <3.5 kg
•Storage temperature: 5 ⁰C to 60 ⁰C
•Operational in ambient lighting up to 1500 lux.
•1 click calibration.
•1 click scanning.
•Preset or customisable scan angles.
•Output formats: PLY, OBJ (colour), and STL.
•Optional shadow filling by adding extra scans from any viewpoint.
•Automatic mesh cleaning, hole filling, compression, and floating noise removal.
Minimum PC Requirements
•8 GB RAM (16 GB may be required for full 40mm x40mm super resolution scanning).
•Supports OpenGL 3.1
Note: Mac with “Windows Parallels” is not sufficient.
Connectivity and Power Supply
•USB 2.0, USB 3.0, or Wi-Fi Data Transfer.
•Input Voltage: AC 110V – 240V, 50/60Hz, converted to 5V 10A.
•AC Adapter supplied with a UK, EU, US, or AU power cord, depending on your location.
•Power consumption: 25W typical.
Extra reasons to buy:
•Customer support via video, text or email.
•If you are not happy with the scanner within 30 days, we will refund all but the postage.
•Its a well tested product made to ISO 13485, and registered with the American FDA (because its ancestor is a medical device).
Unboxing and setup
How to Scan and Crop
How to compare parts with their CAD
Scanning ring impression pots
New software features
How to create '360' scans
How to 3D print from a scan
About the Tupel 3D Dental Scanner
Our dental scanner is specifically designed for dentists, it has:
- Dedicated dental software to:
-- Record patient information,
-- Scan models, impressions, and dentures.
-- Powerful alignment algorithms to align upper and lower models.
-- Scan, align and crop all from one software package.
- Dental holders designed for models, impressions, dies and dentures.
- Its a FDA registered medical device, so you can use it for your patients with confidence.
- The Tupel 3D Dental scanner can be used with the Tupel 3D general purpose scanning software, so it can do all the things the Tupel 3D scanner can do.
See our Dental Scanner scan and align stone models.
Watch a denture being scanned
See an impression being scanned
About the design:
In the press:
Tupel 3D scanners are designed and manufactured in Oxford, England by Tupel Ltd.
"The Tupel 3D Scanner Will Break Financial Barriers", fabbaloo.com, 31st Aug 2021
"Tupel3D: Desktop 3D scanner", kickstarter.com, 1st Sept 2021
"Tupel 3D Adds Powerful, Low Cost Dental 3D Scanner", fabbaloo.com, 23rd Sept 2021
"Tupel3D affordable, high precision desktop 3D scanner hits Kickstarter", geeky-gadgets.com, 6th Sept 2021
