Supremely accurate desktop 3D scanners

This desktop scanning technology has been acquired by eLUXE3D
who will continue to develop and expand the product line.

We continue to support Tupel 3D customers.

Please visit eluxe3d.com for more information.

Our video demonstration...

Features we are proud of...

Ease Of Use

Accuracy

1 click calibration

Fully automatic calibration that takes 4 minutes to complete.

8 MP cameras x 2

It is the highest resolution scanner we know of.
Scan repeatability is as low as 4 micrometres.

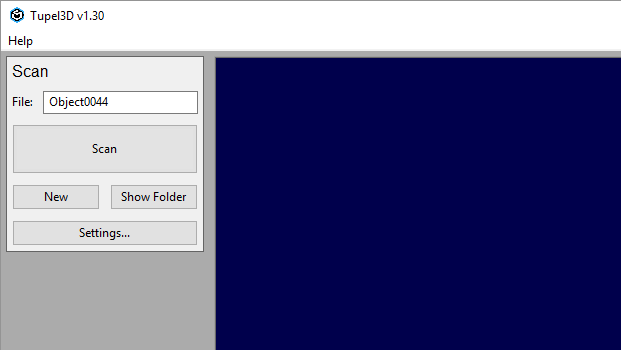

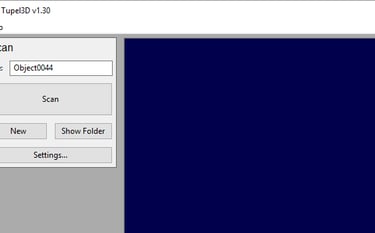

1 click scanning

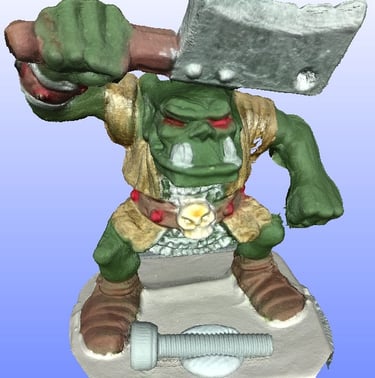

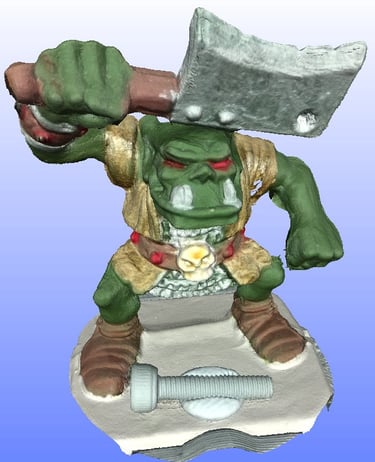

Full colour scanning

Wi-Fi

Allows you to position the scanner across the room, keeping your immediate desk space clear.

Gripping holders

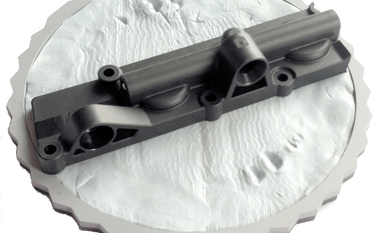

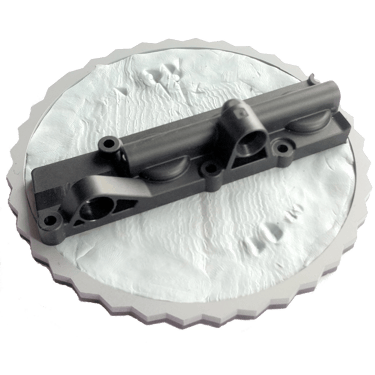

The tack pad secures larger objects quickly.

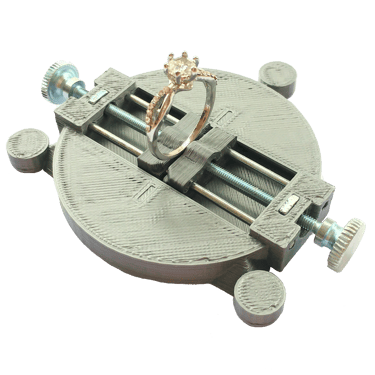

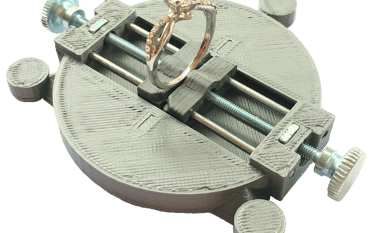

The mini-vice holds small objects with minimal blocking. The jaws are made of plastic so you can scan it, not scratch it.

Add view

This feature forces the scanner to look into the crevices of your object to get the most complete scan possible.

Affordability

Highly competitive pricing.
We started on a crusade against over priced medical technology.

Full specifications:

The Tupel 3D scanner converts physical objects into 3D CAD files.

Scan Volume (Cylindrical):
•120mm diameter x 95mm tall (standard).
•40mm diameter x 40mm tall (super resolution).
Accuracy
•Scan repeatability (with ideal conditions):
± 12 µm (standard).
± 4 µm (super resolution).
•Mesh density: adjustable from 25µm to 150µm
•Operating temperature: 20⁰C ± 5 ⁰C
Scan Time (typical)
•1 min 20 sec typical (standard) MK2 scanner.
•4 min typical (super resolution) MK2 scanner.
Note: scan times can increase depending on the complexity of the object and the number of scan angles taken.
Hardware Features
•2 axis rotation stage.
•Structured light projection with 2 x 8MP cameras.
•Dimensions (l w h): 24.6 x 25.8 x 22.5 cm (approx. 10” x 10” x 9”)
•Weight (scanner only): <3.5 kg
•Storage temperature: 5 ⁰C to 60 ⁰C
•Operational in ambient lighting up to 1500 lux.

Software Control
•1 click calibration.
•1 click scanning.
•Preset or customisable scan angles.
•Output formats: PLY, OBJ (colour), and STL.
•Optional shadow filling by adding extra scans from any viewpoint.
•Automatic mesh cleaning, hole filling, compression, and floating noise removal.
Minimum PC Requirements
•Windows 10
•8 GB RAM (16 GB may be required for full 40mm x40mm super resolution scanning).
•1280x720 screen.
•Supports OpenGL 3.1
Note: Mac with “Windows Parallels” is not sufficient.
Connectivity and Power Supply
•USB 2.0, USB 3.0, or Wi-Fi Data Transfer.
•Input Voltage: AC 110V – 240V, 50/60Hz, converted to 5V 10A.
•AC Adapter supplied with a UK, EU, US, or AU power cord, depending on your location.
•Power consumption: 25W typical.

Instructional videos:

Unboxing and setup

How to Scan and Crop

How to compare parts with their CAD

How to create '360' scans

How to 3D print from a scan

Scanning ring impression pots

New software features

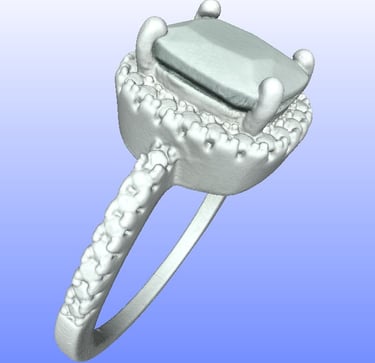

New Jewellery Scanning features

Jewellery Photography

3D Scanning Gemstones

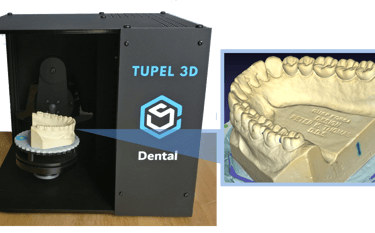

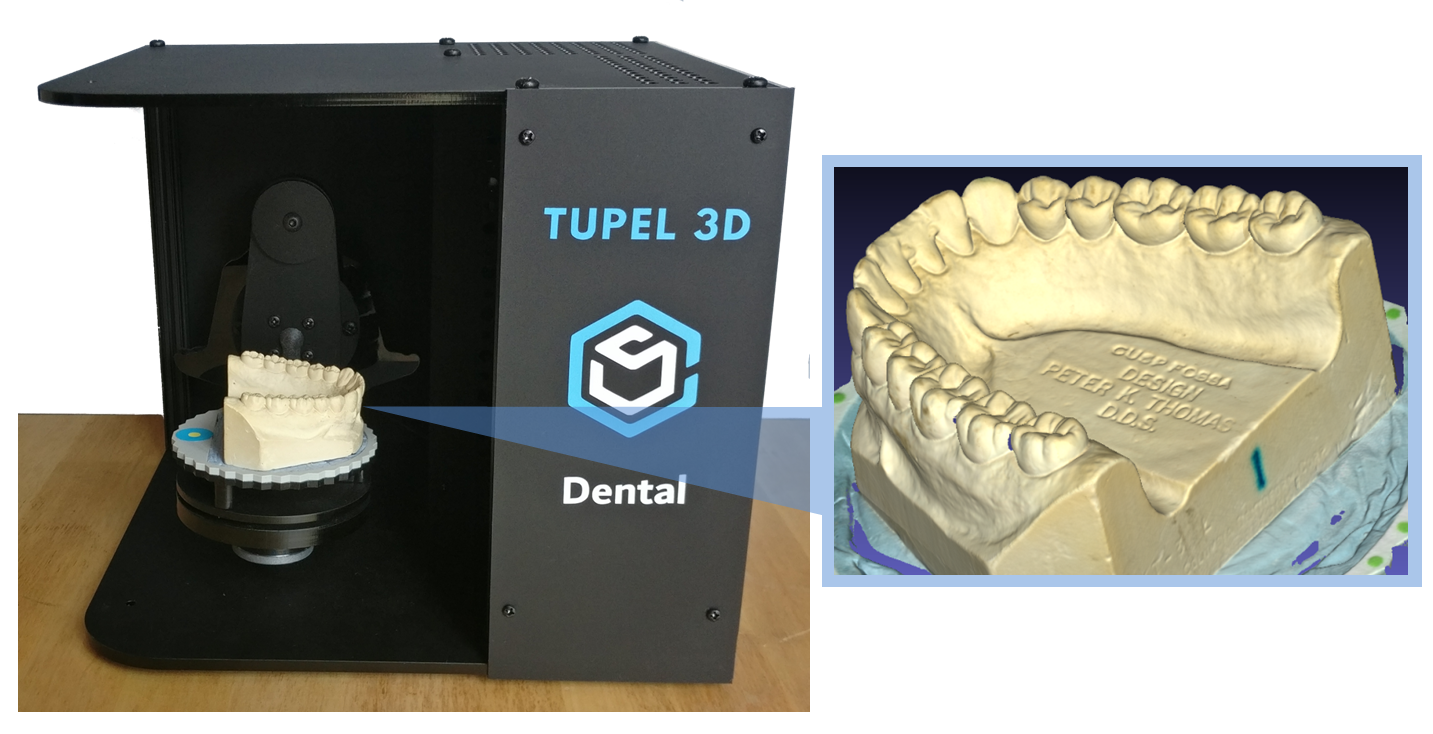

About the Tupel 3D Dental Scanner

Our dental scanner is specifically designed for dentists, it has:

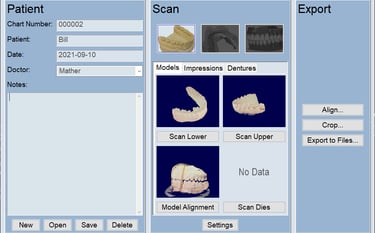

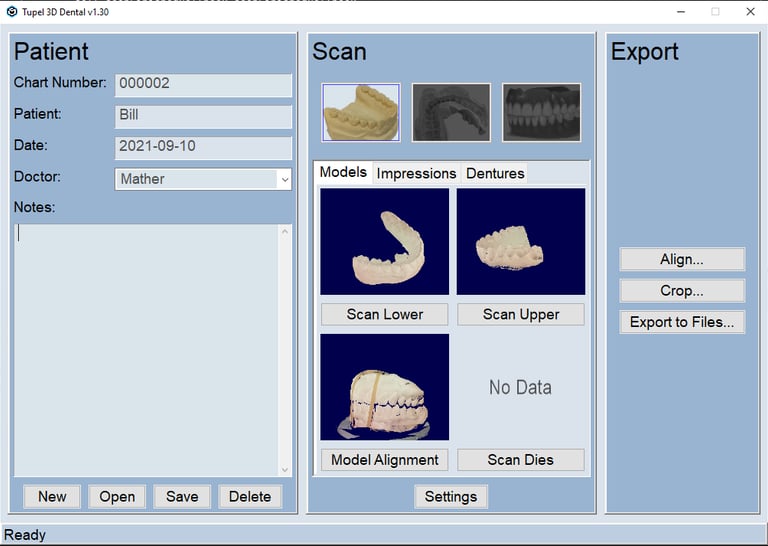

- Dedicated dental software to:
-- Record patient information,

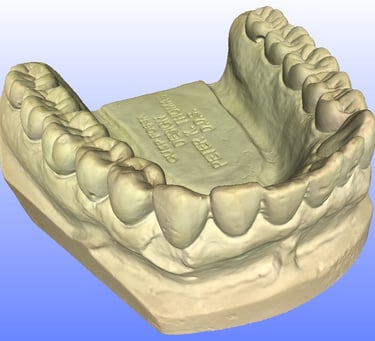

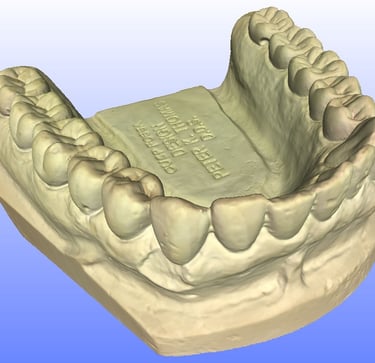

-- Scan models, impressions, and dentures.
-- Powerful alignment algorithms to align upper and lower models.
-- Scan, align and crop all from one software package.
- Dental holders designed for models, impressions, dies and dentures.
- Its a FDA registered medical device, so you can use it for your patients with confidence.
- The Tupel 3D Dental scanner can be used with the Tupel 3D general purpose scanning software, so it can do all the things the Tupel 3D scanner can do.
